How To Calculate Duct Static Pressure Loss. If the average velocity, c, of the air (m/s) is known, the value of velocity pressure (p v ) can be calculated from 0.5 ρ c 2 (frequently this is shortened to 0.6 c 2 by applying a ‘standard’ density of air of 1.2. Pressure drop (inches water) equipment name:

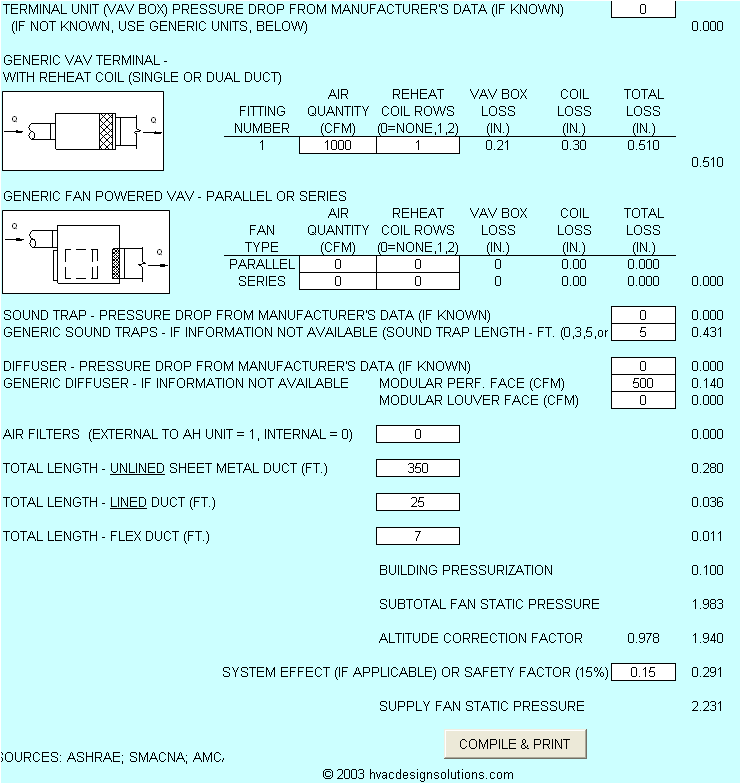

STATIC PRESSURE CALCULATOR.xls Civil Engineering Soft from www.scribd.com
Static pressure testing normally requires five steps to complete: See further detail related to it here. Then δp = 4*f*l/d*0.5*ρ*v 2.
The Index Run Is The Duct Run With The Maximum External Static Pressure Drop.
This will be the static pressure caused by the ductwork. For that the required air duct diameters and pressure loss shall be determined under condition of permissible air sped in the duct. Drill your test holes in the equipment and/or duct system;
Show Me What These Round Elbows Look Like;
Revit computes pressure losses in ductwork based on the geometry and roughness of the ductwork, air density, and air dynamic viscosity. Etc and get a friction factor f. Multiply the static pressure for 100 feet of duct by the percentage of 100 feet that you have.
•Obtain Other Duct Fittings Pressure Losses From Manufacturers Such As Duct Heaters, Dampers, Filters, Grilles, Coils, Etc •Calculated By The Following Formula (Derived From Bernoulli’s) ∆P Total = K T X P V 2 = K T X ½ X Ρv ∆P Total = The Total Pressure Loss Across The Duct Fitting K T = The Pressure Loss Coefficient Of Duct Fitting P V = Velocity Pressure (Dynamic Pressure) Ρ = Density.
Do that for all the ducts and branches on the table. Take the needed static pressure readings; Suppose that the air duct diameter is 200 mm and air speed is 1.95 m/s, then the pressure loss is 0.21 pa/m x 15 m.
Other Duct Type Loss Factor:
Available as microsoft excel spreadsheet download. Use the friction chart to look up the pressure loss per 100 ft of duct. In order to help you we have devised our own mini calculation “apps” feel free to use them as much as you want, if you need any help please don’t hesitate to contact our technical gurus at mas.
Cannot Mix Round And Regtangular Ducts In A Single Calculation.
It’s rated for a certain amount of air flow at a specific total external static pressure. Pressure (p v) + duct static pressure (p s) = duct total pressure (p t), where the term ‘duct static pressure’ will be taken to mean ‘duct static pressure relative to the surrounding air’. Δh = 0.109136 q1.9 / de5.02 (1) where.
